  Power Supplies > Mean Well Power Supplies > PS-AD-155


Quantity:
Syntax Part Number: PS-AD-155
Manufacturer Number: AD-155
Manufacturer: MEAN WELL
Package: PCS
Product Information:

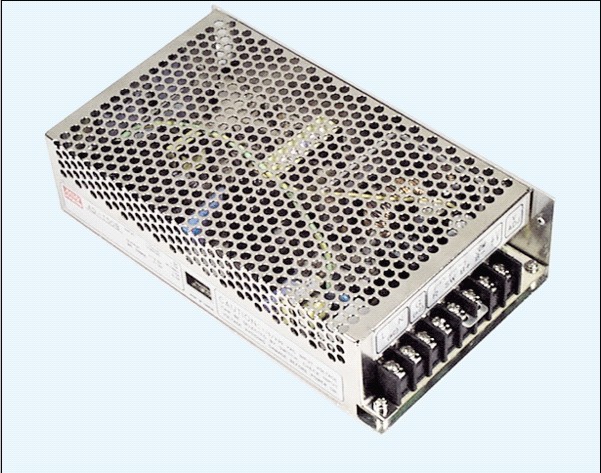

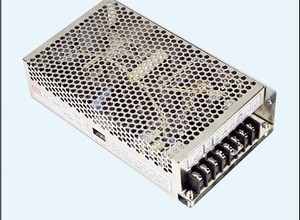

MEAN WELL 155W SINGLE OUTPUT SWITCHING POWER SUPPLY

Models Available AD-155A AD-155B AD-155C
CH1 CH2 CH1 CH2 CH1 CH2
Output DC Voltage 13.8 V 13.3 V 27.6 V 27.1 V 54 V 53.5 V
Rated Current 10.5 A 0.5 A 5 A 0.5 A 2.7 A 0.2 A
Rated Power 151.55 W 151.55 W 156.5 W
Input Voltage Range 88 ~ 264VAC          124 ~ 370VDC
  Dimension 199 x 110 x 50 mm (LxWxH)
